KEQIANG MACHINERY knows what you expect from a mining project, and we are making it happen with unrivaled products and services.
Leave Message
Application Areas: Construction waste, concrete, river pebbles, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc.

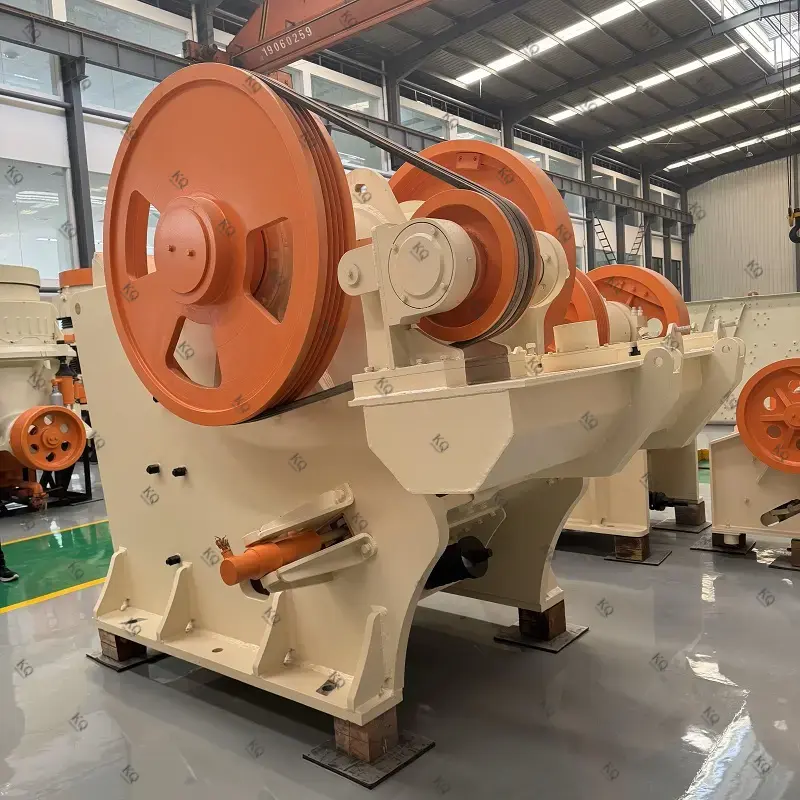

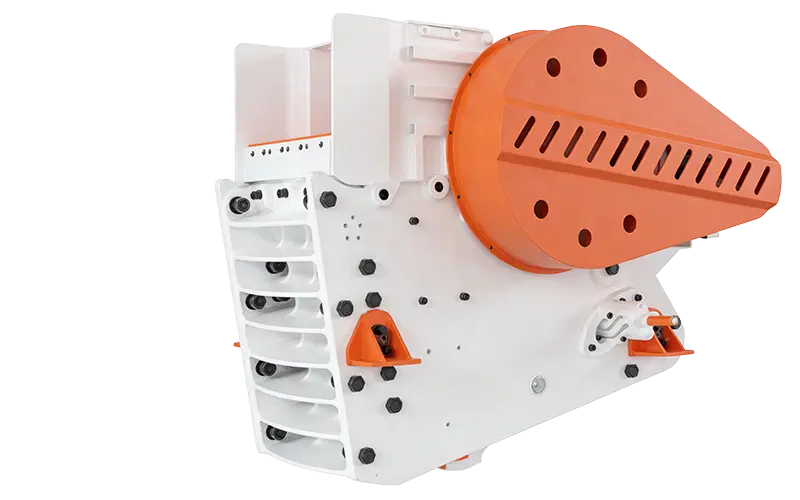

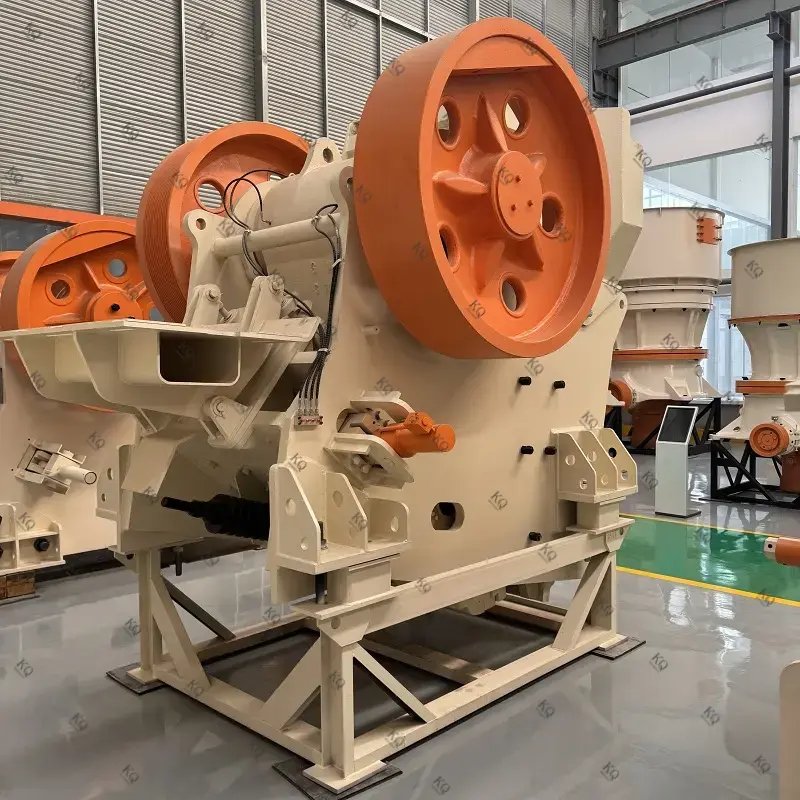

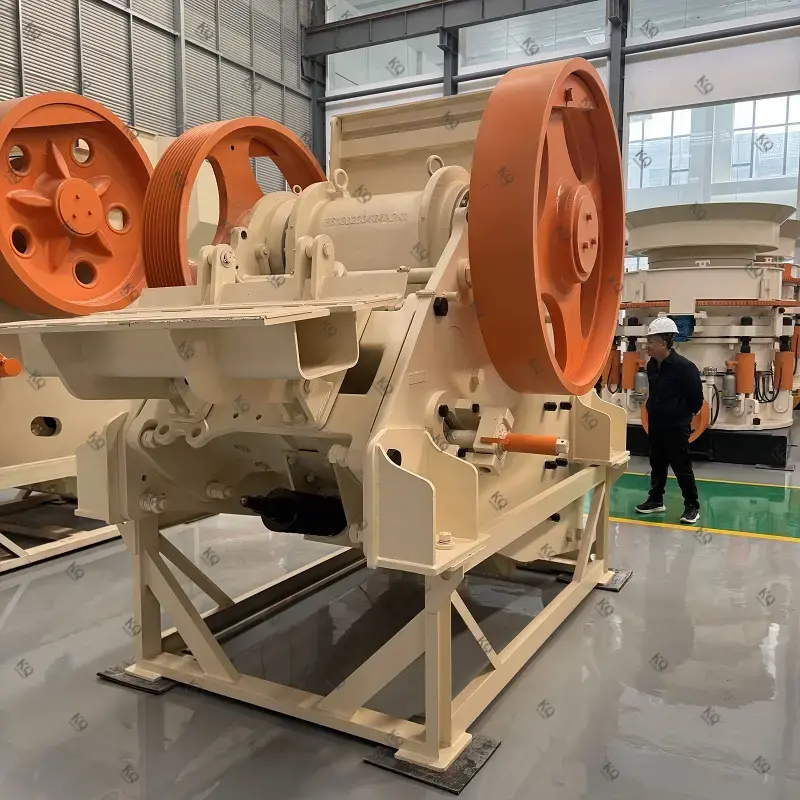

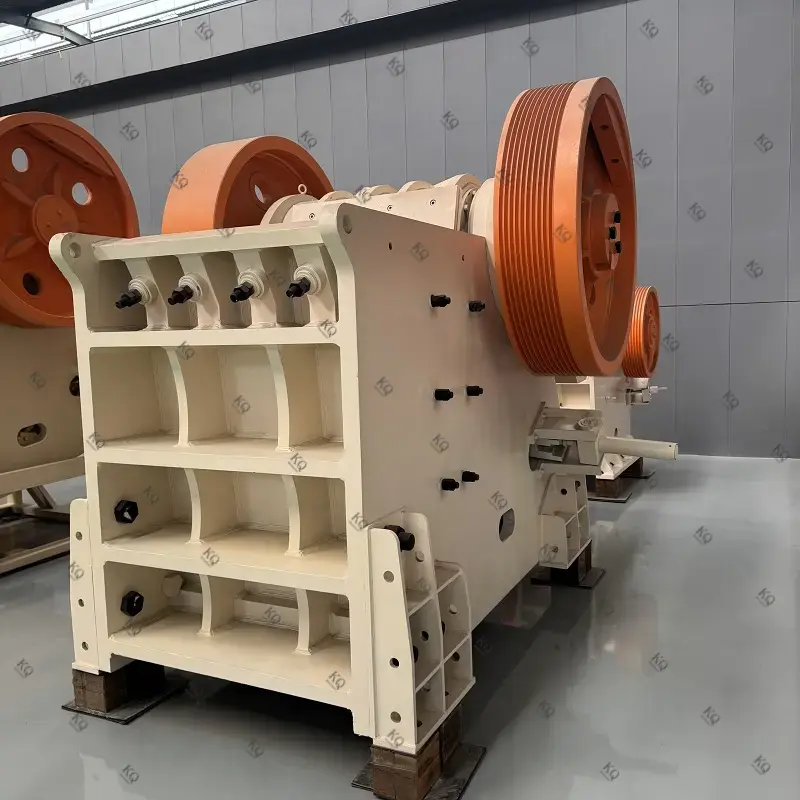

The C Series Jaw Crusher is a high-performance crushing machine specifically designed for primary crushing applications in mining, sand and gravel aggregate production, and construction waste processing. Manufactured with an optimized crushing chamber design and high-strength materials, this equipment is ideally suited for crushing hard and medium-hard materials such as granite, basalt, iron ore, gold ore, and concrete. The optimized structure and crushing chamber significantly enhance crushing efficiency compared to conventional jaw crushers. With its compact design, high crushing ratio, easy maintenance, and stable operation, it has become the ideal choice for the primary crushing stage in large-scale crushing production lines worldwide.
 |
🟠1. High-Efficiency Crushing
This C-Series jaw crusher features a deep-chamber crushing design. The deep, dead-space-free crushing chamber ensures thorough crushing of the material and reduces residence time. This enhances the overall efficiency of the crushing production line and maximizes the economic benefits for your mining or construction project.
🟠2. Robust Construction and Long Service Life
Featuring manganese steel jaw plates and heavy-duty bearings, the high-manganese steel wear-resistant jaw plates effectively withstand wear and impact, with wear resistance improved by 30%. Key components such as the eccentric shaft and bearings are made from high-quality materials and precision-machined, ensuring stable performance even when crushing high-hardness materials. This extends the equipment’s service life and reduces maintenance costs.
🟠3. Intelligent Adjustment:
Mechanical or hydraulic adjustment can be customized as needed, allowing for quick and easy adjustment of the discharge particle size (range: 40–300 mm).
🟠4. Easy Maintenance:
The hydraulic lubrication system and flip-up protective plates significantly reduce maintenance time.
🟠Suitable Production Capacity:
Fixed Crushing Production Line:
C80 | C96 | C106 | C116 are suitable for crushing projects with a capacity of less than 200 metric tons per hour.
C116 and larger models are suitable for crushing projects with a capacity of 300 metric tons per hour or more.
C80 | C96 | C106 | C116 | C120 can be mounted on crawler-mounted or wheeled crushing plants for use.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

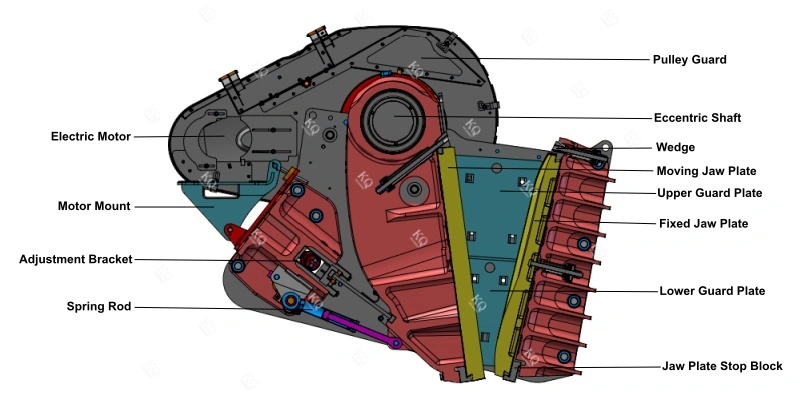

🟠The C Series jaw crusher consists primarily of a fixed jaw plate, a movable jaw plate, an eccentric shaft, a flywheel, and an elbow plate.
🟠Material enters the crushing chamber through the top feed opening and falls between the fixed and movable jaw plates.
🟠Driven by the eccentric shaft, the movable jaw plate moves toward the fixed jaw plate. The material is compressed and split between the two jaw plates.
🟠After repeated compression and grinding, the crushed stone that meets the discharge size requirement is discharged under the force of gravity.
🟠Material that does not meet the standard remains in the crushing chamber for further crushing until it reaches the required discharge size.
C80 | C96 | C106 | C116 | C120 | C130 | C150 | C160 | |
Maximum Installed Power | 75 kW | 90 kW | 110 kW | 132 kW | 160 kW | 185 kW | 200 kW | 250 kW |
Rotational Speed | 350 rpm | 330 rpm | 280 rpm | 260 rpm | 230 rpm | 220 rpm | 220 rpm | 220 rpm |
Base Crusher Weight | 7 650 kg | 10 150 kg | 15 650 kg | 19 240 kg | 27 990 kg | 40 150 kg | 50 950 kg | 76 300 kg |
Operating Weight of Crusher | 9 340 kg | 12 260 kg | 18 510 kg | 22 470 kg | 31 690 kg | 46 300 kg | 59 440 kg | 87 260 kg |
Minimum Tight-Side Discharge Opening | 40 mm | 60 mm | 70 mm | 70 mm | 70 mm | 100 mm | 125 mm | 150 mm |
Maximum Tight-Side Discharge Opening | 175 mm | 175 mm | 200 mm | 200 mm | 175 mm | 250 mm | 250 mm | 300 mm |
Feed Opening | ||||||||
Width | 800 mm | 930 mm | 1 060 mm | 1 150 mm | 1 200 mm | 1 300 mm | 1 400 mm | 1 600 mm |
Depth | 510 mm | 580 mm | 700 mm | 760 mm | 870 mm | 1 000 mm | 1 200 mm | 1 200 mm |
Maximum Feed Size | 410 mm | 460 mm | 560 mm | 610 mm | 700 mm | 800 mm | 960 mm | 960 mm |
