Crawler Jaw Crushing Plant

Application Areas: Basalt, quartzite, cobblestone, granite, construction waste, iron ore, limestone, concrete recycling material, etc.

≤950mm
Feed Size
30-450KW
Motor Power
30-600T/H
Capacity
Crawler Jaw Crushing Plant
60S Quick response
30 min Technical reply
24h design proposal
365 days to receive service needs

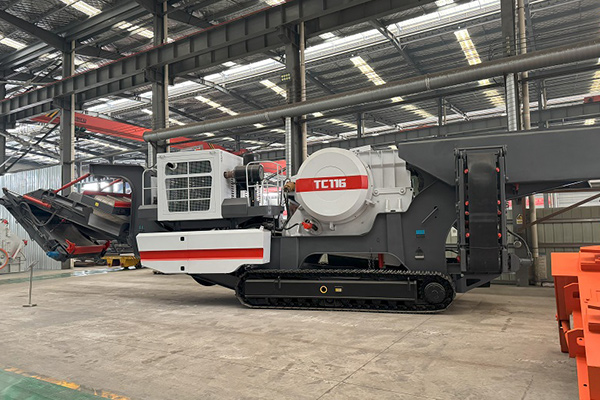

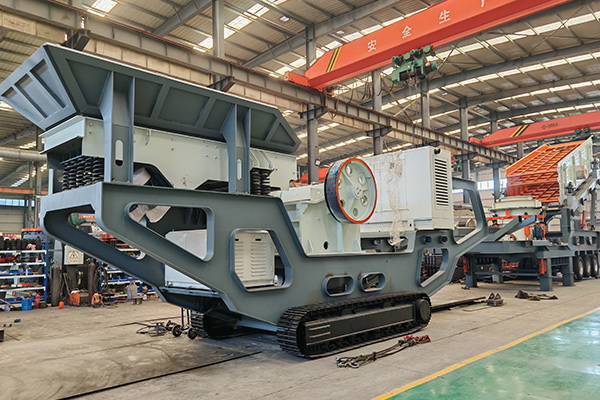

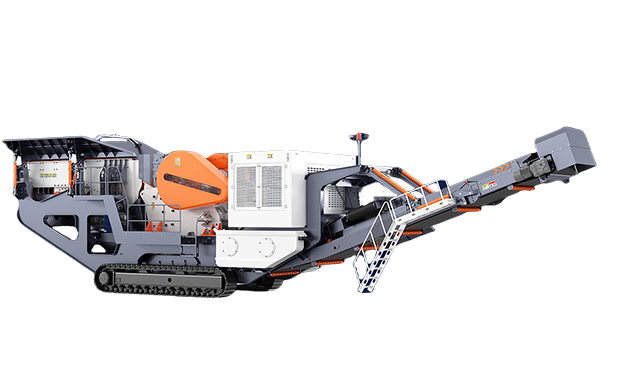

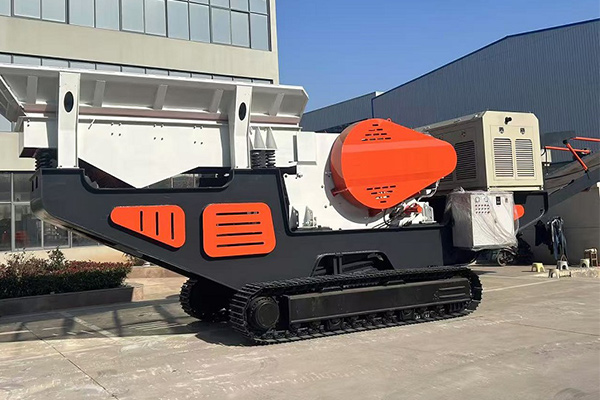

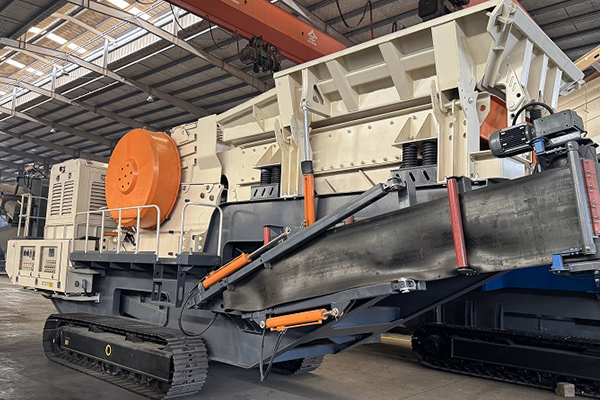

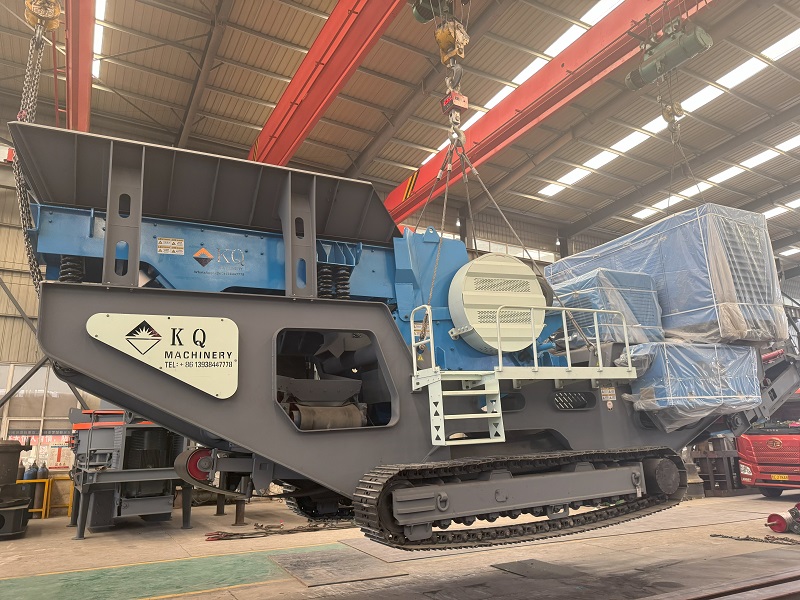

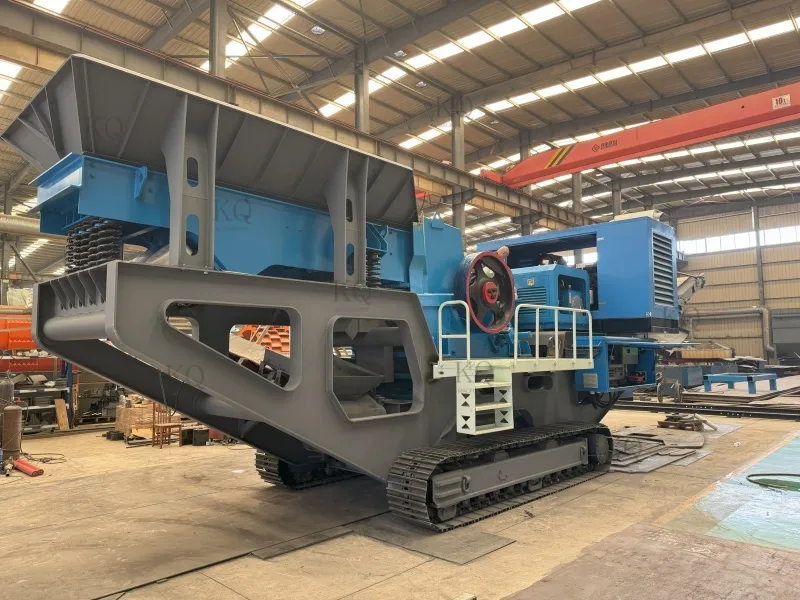

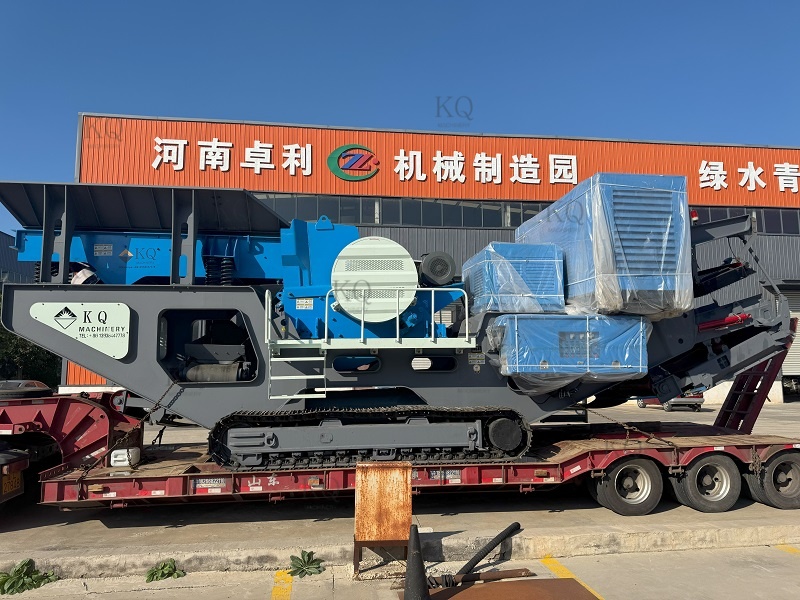

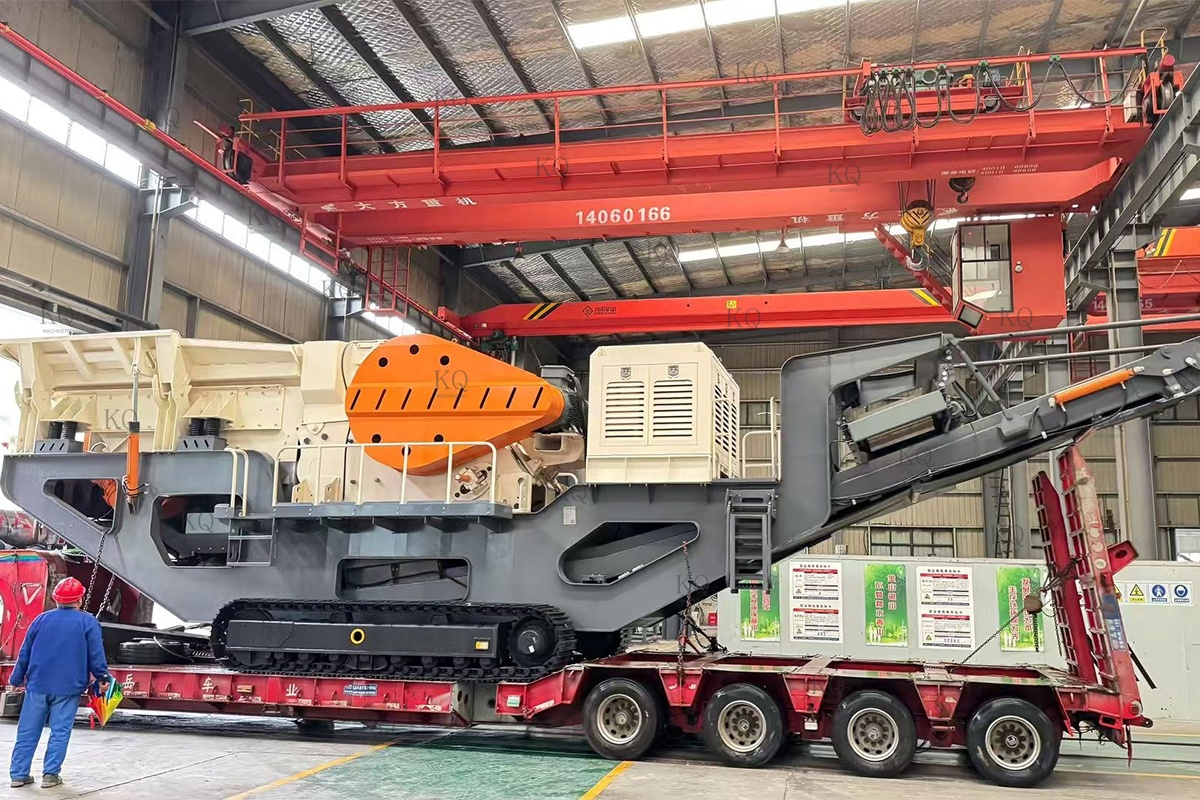

Crawler Jaw Crushing Plant

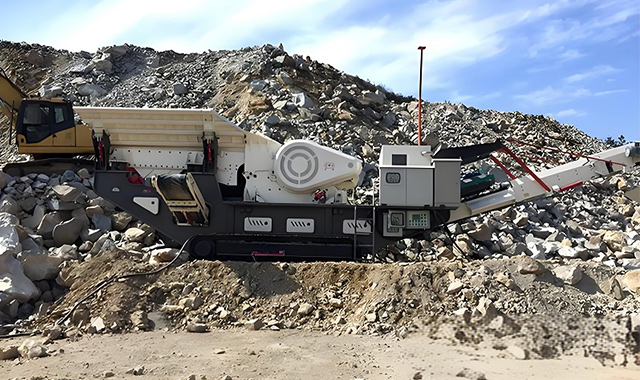

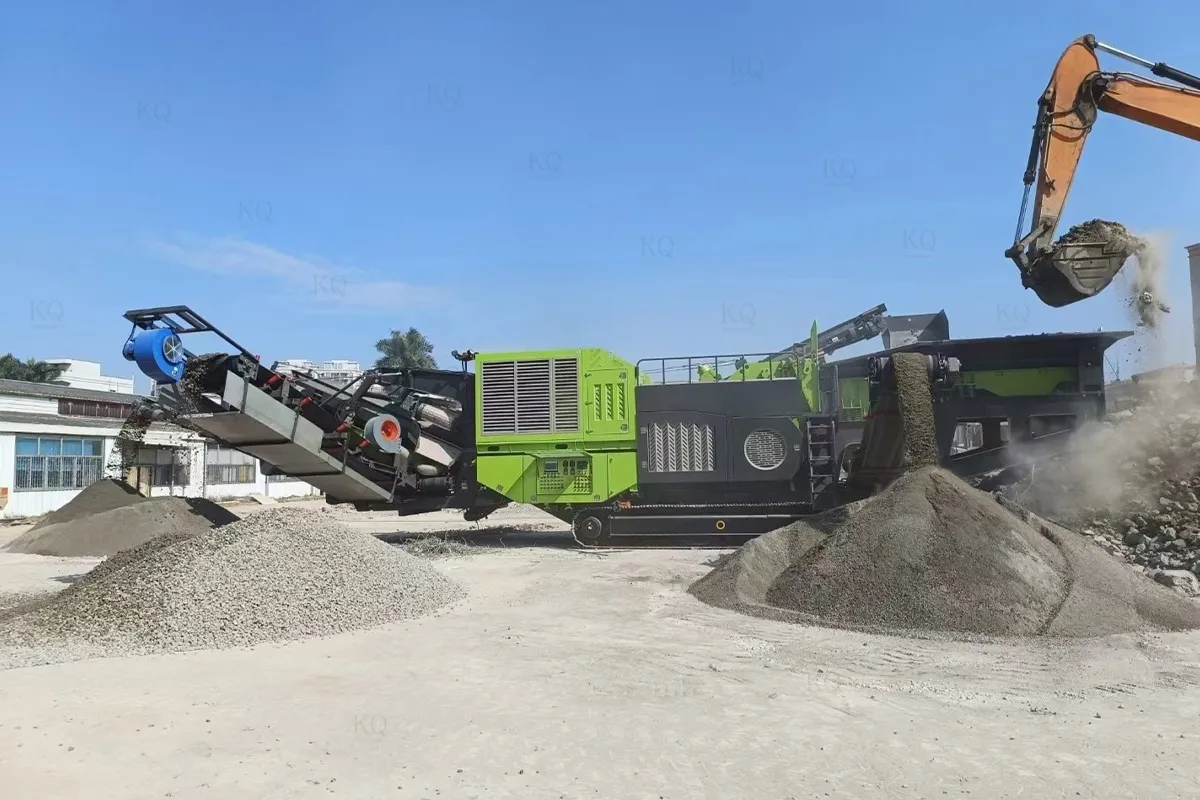

Crawler mobile crushing plant is specially designed for crushing operation under rugged and complicated road conditions.

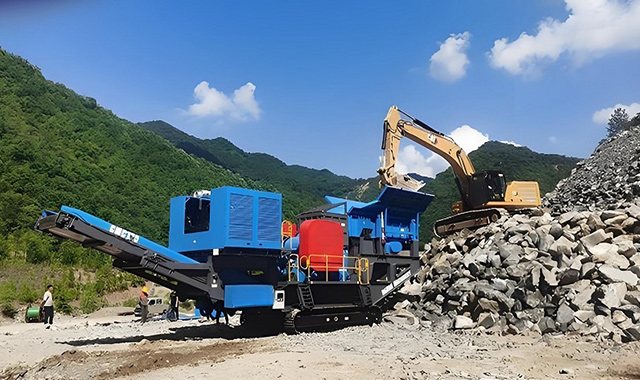

It adopts fully hydraulic driven crawler chassis, equipped with self-developed intelligent traveling system, integrating feeding, crushing (jaw, cone, impact or VSI), screening (vibrating screen with optional layers), conveying and other process equipment, and equipped with diesel power system. It can directly crush raw materials into ideal particles at stone quarrying site or construction waste demolition site, saving transportation cost, site cost, and time cost.

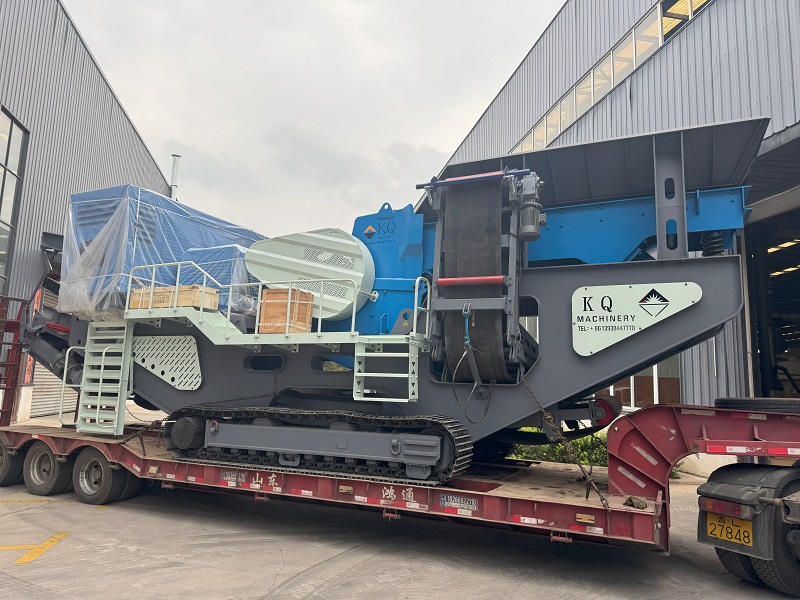

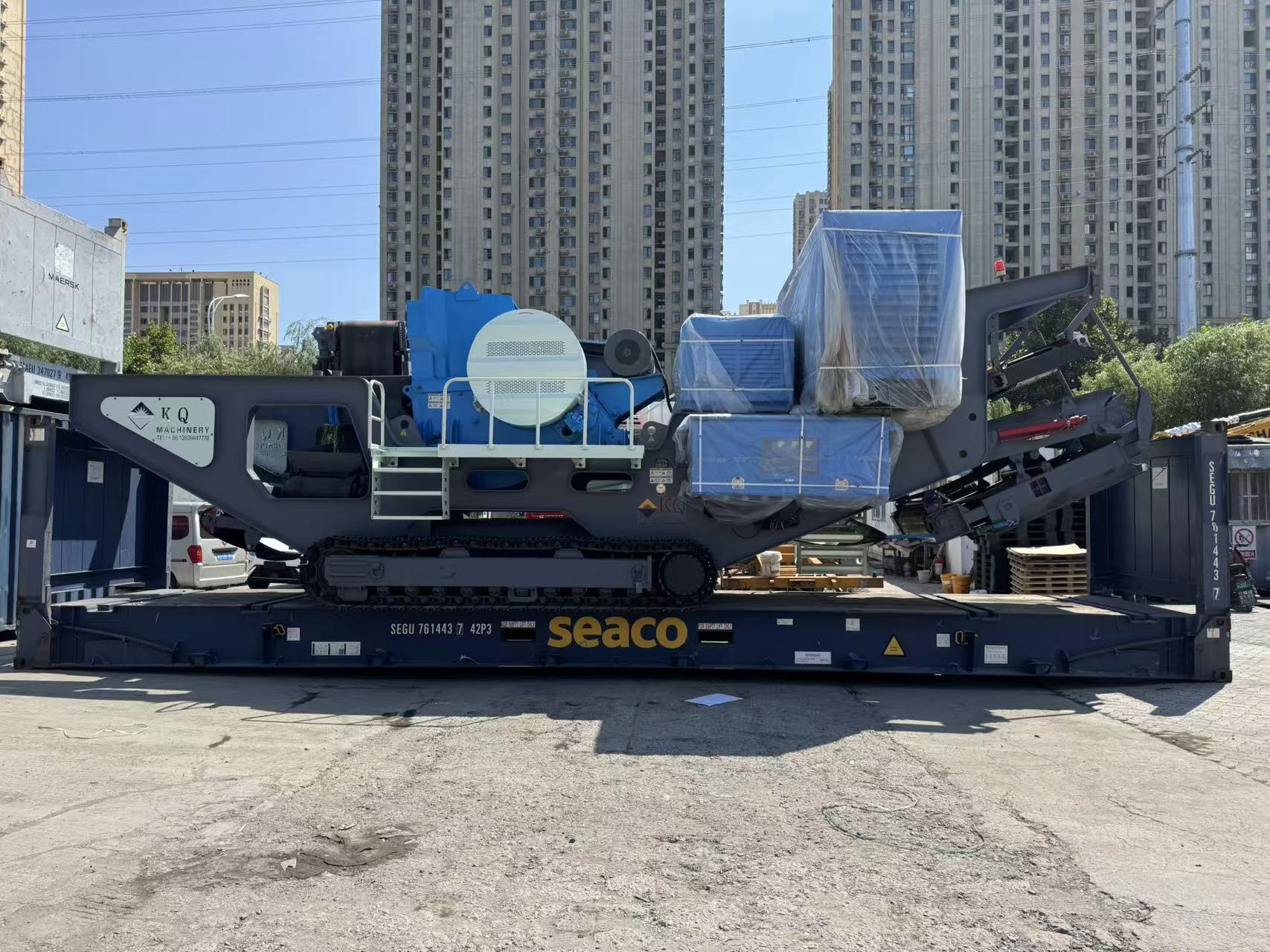

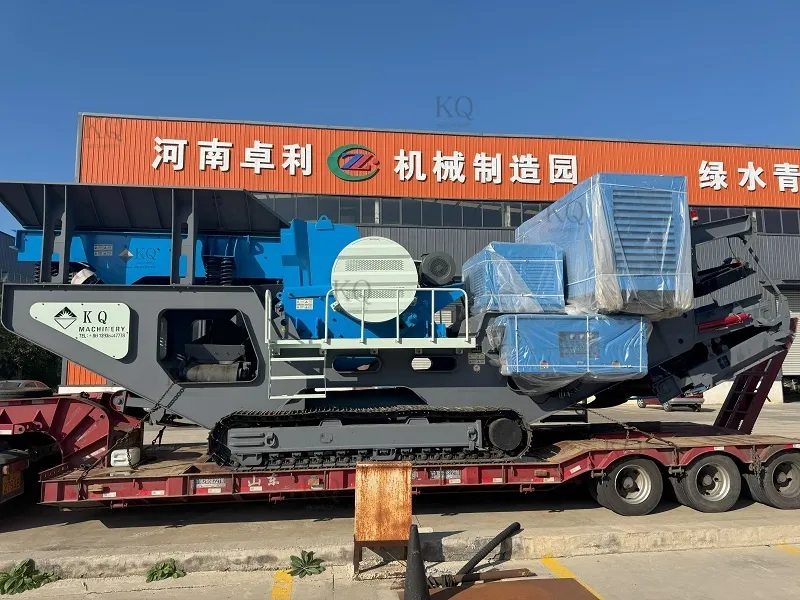

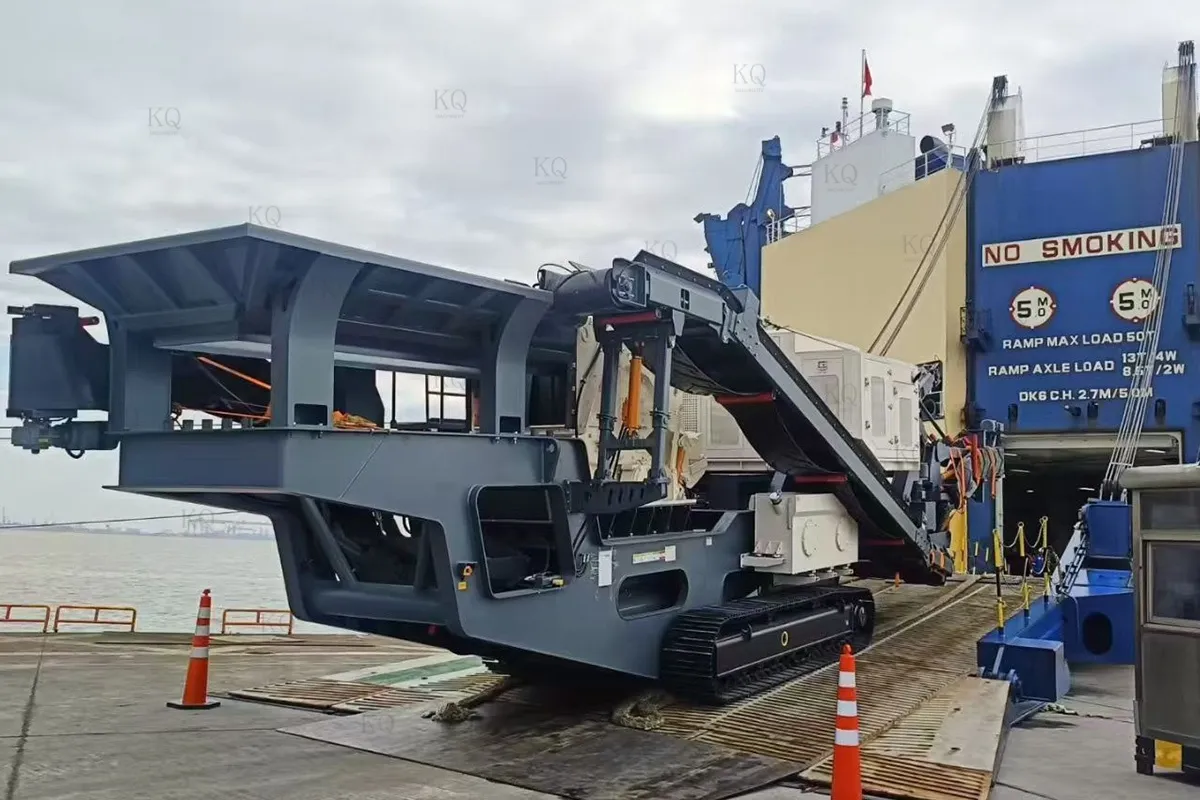

After completing the crushing work at one site, it can be transferred to other crushing sites at any time and start working immediately, which greatly improves the working efficiency and return on investment.


Selection according to the material, size and granularity of raw materials

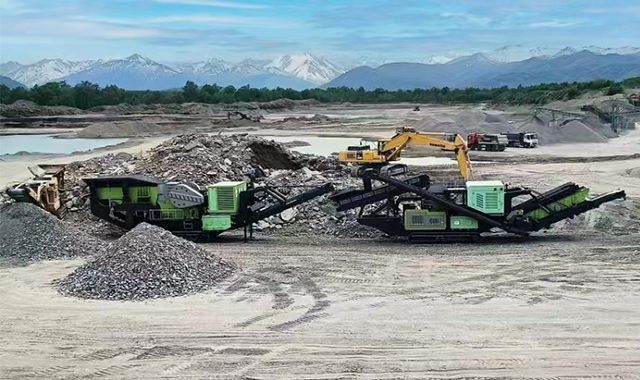

Commonly used crawler mobile crushing plants are: mobile jaw crushing plant, mobile cone crushing plant, mobile impact crushing plant and mobile screening plant, which can be used individually or in combination according to the project requirements, and our engineers will make the most suitable crushing program for you.



Product Advantage

Product Advantage

🟠1.Mobile crawler crushing plant has strong site adaptation and transfer ability, without relying on cranes, flatbed trucks and other external transfer equipment, can independently complete the climbing, over the obstacles, muddy road access and other operations, easy to cope with mining, construction waste dumps, sand and gravel quarries and other complex operating environments. The equipment can follow the raw material mining surface or construction waste dumps flexibly, realizing local crushing and processing, greatly reducing the cost and time loss of raw material transportation; at the same time, the equipment has a high degree of integration, and after arriving at the operation site, it can be put into production without the need for cumbersome installation and debugging process, greatly enhancing the flexibility of crushing operations and construction efficiency.

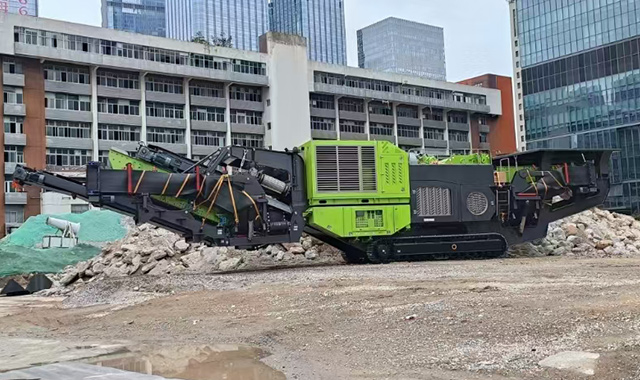

🟠2. For crushing construction waste has a strong advantage

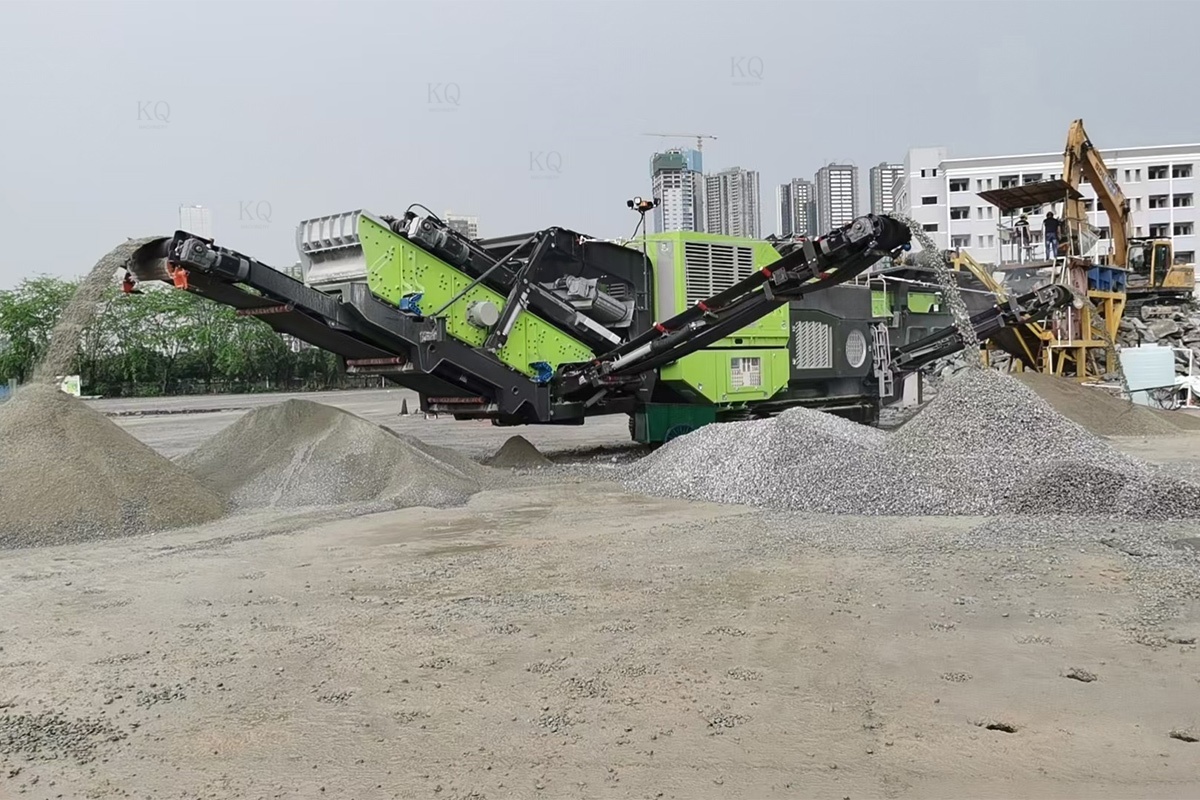

mobile crushing plant can be near the construction site, demolition of construction waste can be converted into construction materials that can be utilized twice at any time and anywhere (equipped with an iron remover, to protect the machine at the same time can be classified and processed iron and concrete), which is both environmentally friendly and efficient.


🟠3 .The acceleration of global infrastructure construction and urbanization has increased the demand for high-efficiency mobile crushing plant. The mobile crushing plant is not picky about the site and has a fast turnaround speed, which can greatly reduce the transportation cost and speed up the construction progress.


🟠4. Mobile tracked crushing plant has significant advantages in noise reduction design, the crushing machine and power system are equipped with professional sound insulation and shock absorption devices. Compared with the traditional stationary crushing equipment, the noise of this equipment can be reduced by 10-15 dB, which will not disturb the life and work of the neighboring residents when working around the residential area, urban infrastructure and other scenarios with strict noise control, realizing the balance between high efficiency crushing and low-noise operation.


Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

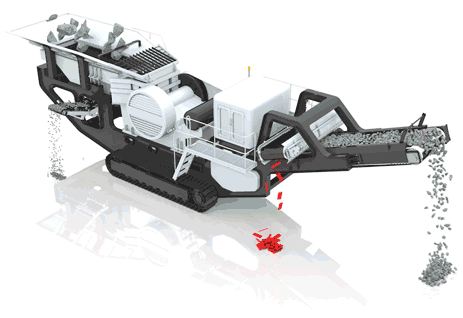

Working Principle

Working Principle

🟠Feeding: Raw materials (e.g. granite, basalt, concrete waste) are loaded into the vibrating feeder using an excavator, which conveys the materials evenly into the jaw crusher chamber.


🟠Crushing: The movable jaws periodically squeeze the fixed jaws to complete the crushing process, crushing the material to the target size (20-80 mm, adjustable). For multi-stage crushing, two crushers (e.g. Jaw + Cone) can be used for finer and more precise (5-50 mm) particle control.


🟠Screening and unloading: An optional built-in vibrating screen is available to classify the crushed material (e.g. 10 mm, 20 mm, 40 mm). Passable aggregate is unloaded into trucks via a conveyor belt and oversize particles are returned to the crusher for reprocessing.

Specification

*The output will vary according to different materials, feed particle size and other factors

Device/Model

STC96

STC106

STC116

STC120

Feeding Department

Bin Volume(m)

4

6

6

9

Feeder Model

FD9638

FD1142

FD1142

FD1349

Feeder Power(KW)

11

15

15

22

Maximum Feeding Particle Size(mm)

450

580

580

630

Crusher

Device/Model

SC96

SC106

SC116

SC120

Crusher Power(KW)

90

110

132

160

Feed Inlet Size(mm)

580x930

700x1060

760x1150

870x1200

Processing Capacity(t/h)

140-450

150-580

190-625

205-780

Belt Conveyor

Main Belt Conveyor

B1000

B1000

B1200

B1200

Side Belt Conveyor

B650

B650

B650

B650

Drive Mode

Motor Reducer

Motor Reducer

Motor Reducer

Motor Reducer

Iron Remover

RCYD-10

RCYD-10

RCYD-12

RCYD-12

Machine Power(KW)

121.2

141.2

168

196

Power System(KW)

Cummins 330

Cummins 330

Cummins 330

Cummins 400
